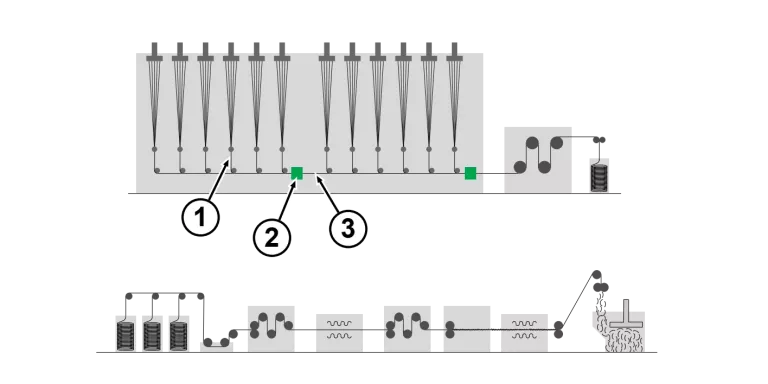

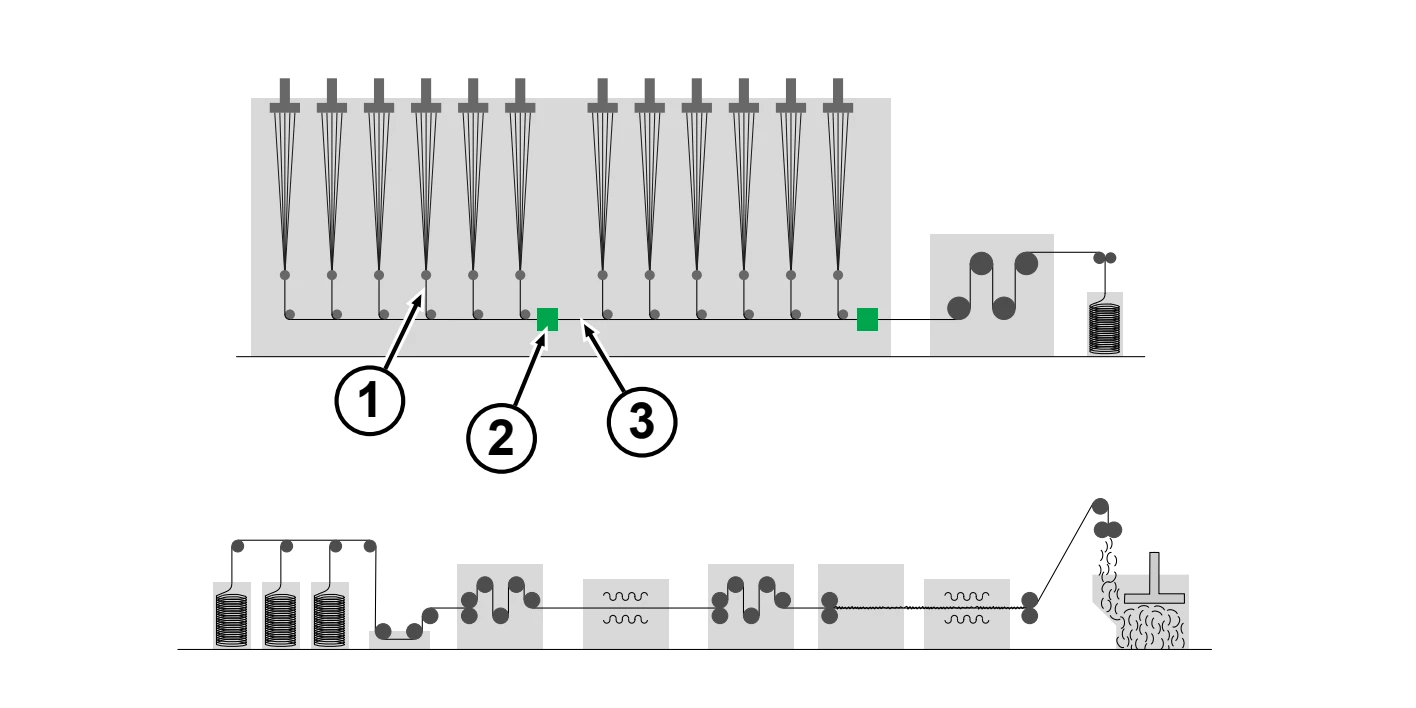

The splicing unit simplifies the handling of individual ends when spinning them in or stringing them up in systems for manufacturing synthetic staple fibre tows. The new end to be threaded is spliced with the general tow in the vicinity of the single spinning position and then cut.

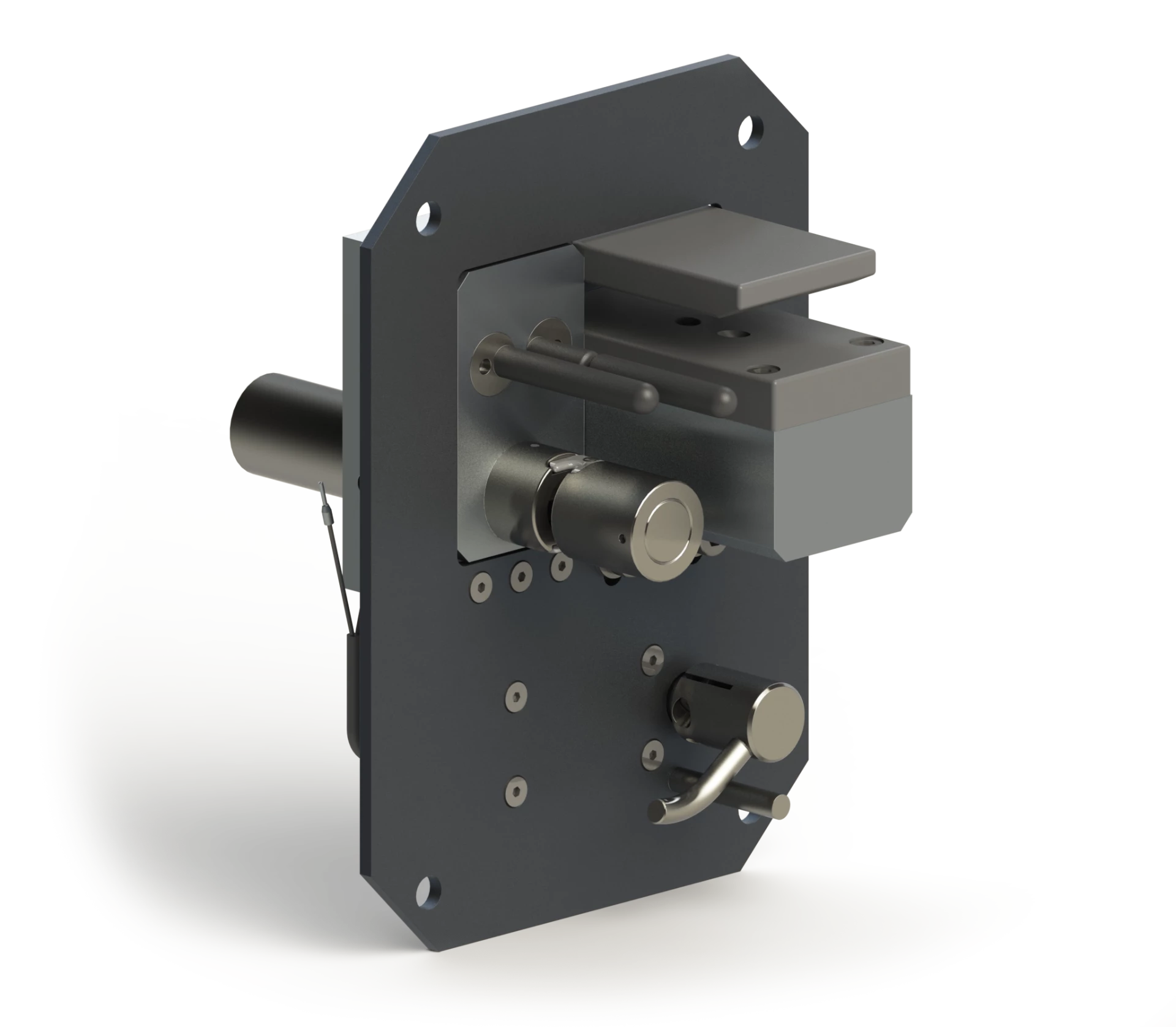

HEBERLEIN. SPLICING-CUTTING UNIT.
Technical data.
Application
| Type | Distance between splicing plates | Count range [dtex] |
|---|---|---|
081 | 8 mm | … 400‘000 |
101 | 12 mm | 400‘000 … 600‘000 |
13 mm | 600‘000 … 700‘000 | |
14 mm | 700‘000 … 800‘000 | |
15 mm | 800‘000 … 1‘000‘000 | |
1041 | 8 mm | 1‘000‘000 … 1‘200‘000 |
1042 | 8 mm | 1‘200‘000 … 1‘400‘000 |
Air consumption
| Type | Air channel diameter | Formula |
|---|---|---|
081 | 2x 8 mm | qvn = 59.5 x (pe + 1) |
101 | 2x 10 mm | qvn = 93.0 x (pe + 1) |
1041 | 2x 10 mm / 1x 4 mm | qvn = 100.4 x (pe + 1) |
1042 | 2x 10 mm / 1x 4 mm | qvn = 100.4 x (pe + 1) |
Compressed air requirements
| Working pressure |
|
| Maximum residual oil content (2*) | 0.1 mg/m3 |
| Maximum residual dust content (3*) |
|
| Maximum residual water content (5*) |
|
