PolyJet-TG TopAir

HEBERLEIN. POLYJET-TG TOPAIR.

Features and Benefits.

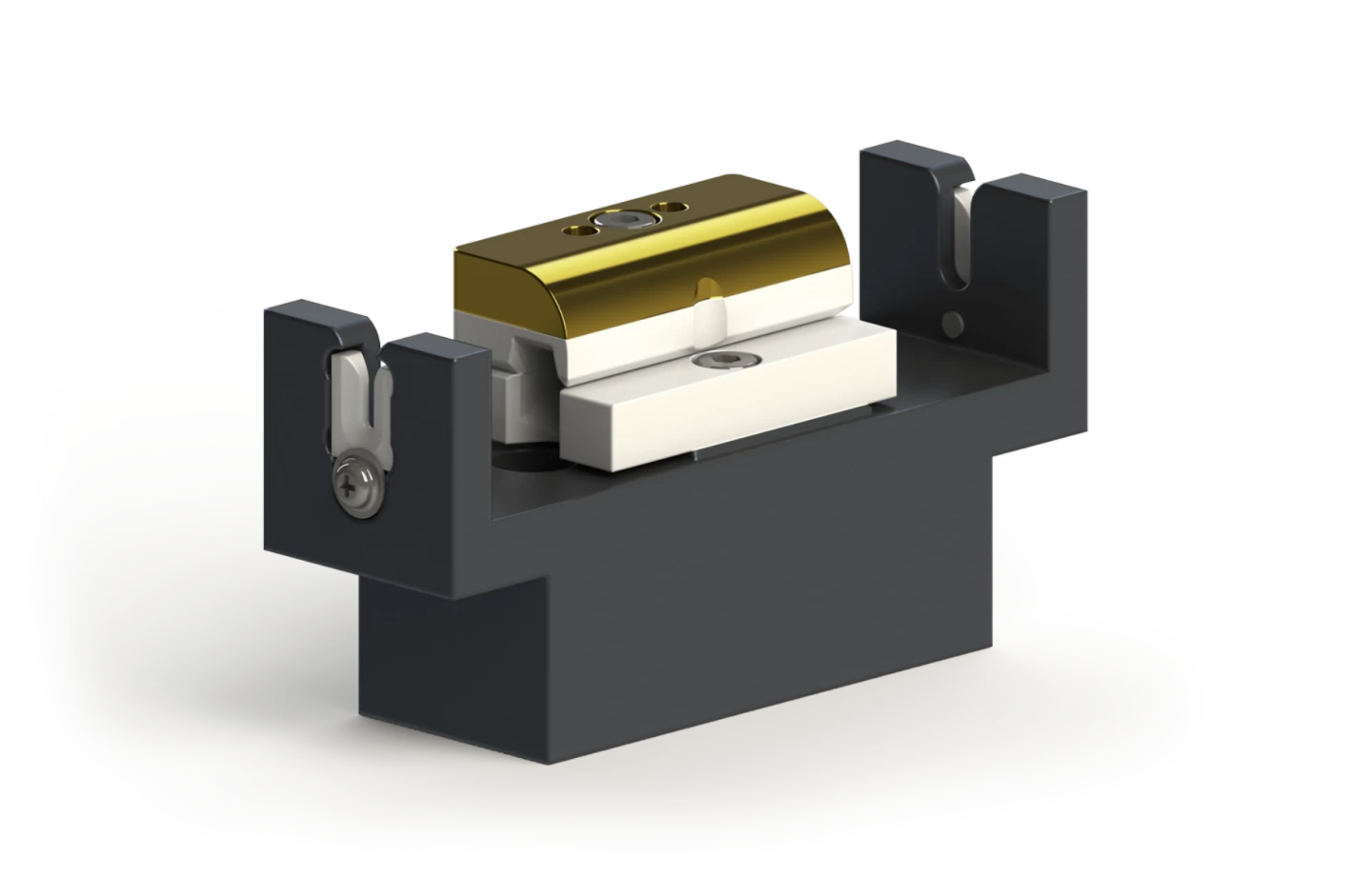

The PolyJet-TG Top Air is used for advanced air interlacing of technical filament yarns made of polyester, nylon, and polypropylene which can be used, for example, in the manufacture of ropes, geo-textiles, hoses, sewing threads, and netting.

Technical data.

Application

Important note
Please consult your sales representative for advice on choosing the right model for this product.

Type	Count in jet [dtex]		Winding speed m/min]	Yarn tension after the jet [cN/dtex]
HN251A/CO33	PES	500 … 1000	… 5000	0.06 … 0.15
	PA	500 … 1000	… 5000	0.06 … 0.15
	PP	400 … 900	… 5000	0.06 … 0.15
HN321A/CO41	PES	600 … 1800	… 5000	0.06 … 0.15
	PA	600 … 1800	… 5000	0.06 … 0.15
	PP	550 … 1500	… 5000	0.06 … 0.15
HN403A/CO52	PES	1000 … 3500	… 5000	0.06 … 0.15
	PA	1000 … 3000	… 5000	0.06 … 0.15
	PP	900 … 2500	… 5000	0.06 … 0.15
HN453A/CO63	PES	2000 … 5000	… 5000	0.06 … 0.15
	PA	2000 … 4500	… 5000	0.06 … 0.15
	PP	1800 … 4000	… 5000	0.06 … 0.15
HN452A/CO62	PES	2500 … 6000	… 5000	0.06 … 0.15
	PA	2500 … 5500	… 5000	0.06 … 0.15
	PP	2200 … 5000	… 5000	0.06 … 0.15
HN520A/CO65	PES	3000 … 7000	… 5000	0.06 … 0.15
	PA	3000 … 6500	… 5000	0.06 … 0.15
	PP	3000 … 6000	… 5000	0.06 … 0.15

PES = polyester fibres, PA = polyamide fibres, PP = polypropylene fibresAll specifications are non-binding reference values.

Air consumption

Type	Air channel diameter	Formula
HN251A/CO33	2.8 mm	q_vn = 3.617 x (p_e + 1)
HN321A/CO41	3.6 mm	q_vn = 5.925 x (p_e + 1)
HN403A/CO52	4.5 mm	q_vn = 9.285 x (p_e + 1)
HN453A/CO63	5.0 mm	q_vn = 11.646 x (p_e + 1)
HN452A/CO62	5.0 mm	q_vn = 11.792 x (p_e + 1)
HN520A/CO65	5.9 mm	q_vn = 15,754 x (p_e + 1)

p_e= overpressure [bar]q_vn= air consumption per thread [m³/h] (standard conditions according to DIN1343)

Compressed air requirements

Overpressure PolyJet-TG TopAir

3.0 … 8.0 bar

For the compressed air quality requirements, see Compressed air purity.
