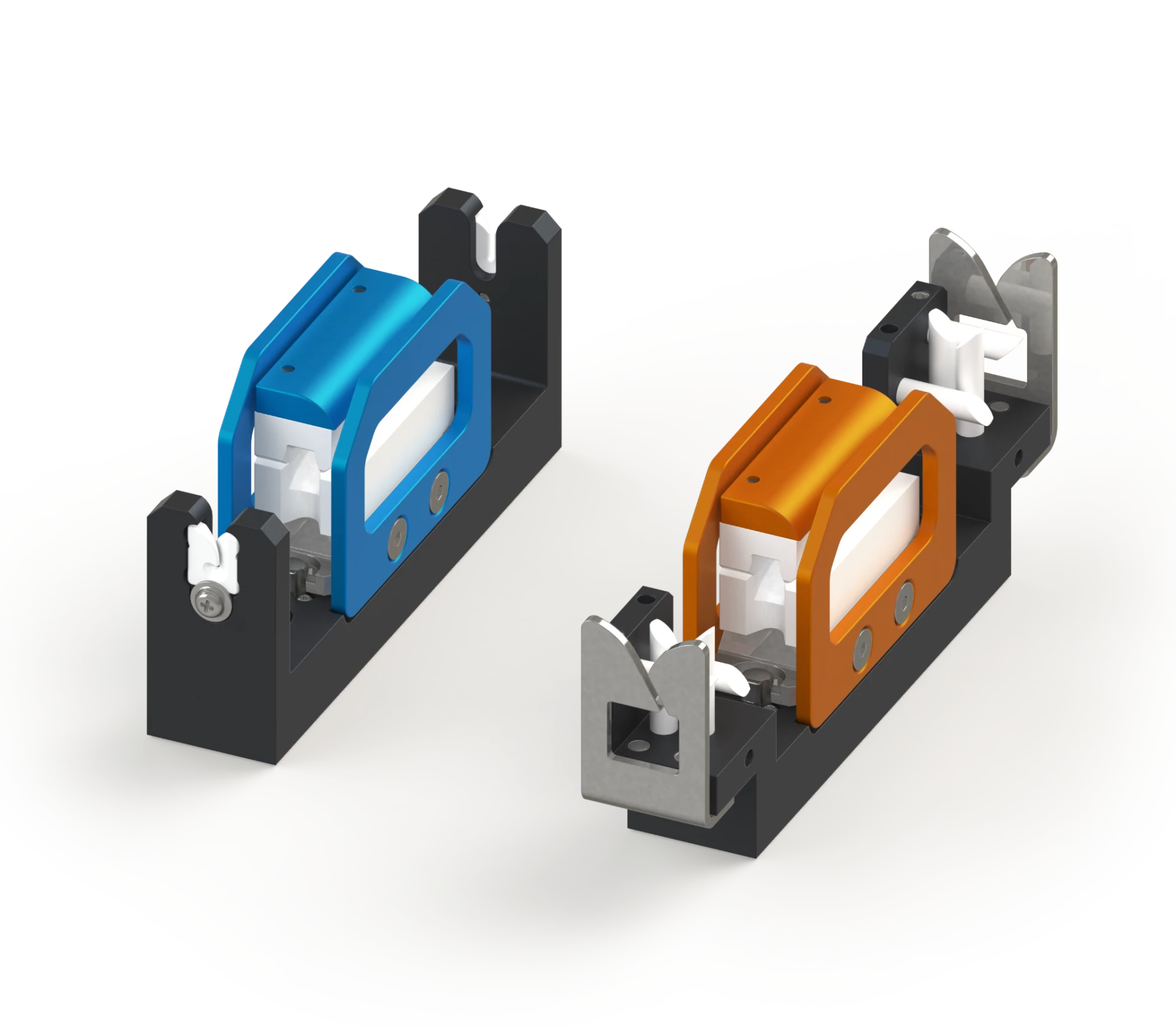

High-performance air interlacing jets for technical yarns. The unique quick-release system allows jet packs to be removed with just a single 180° turn. The lateral threading slot ensures maximum operational reliability. The jets are characterised by a compact, space-saving design and include a roll bar to protect the ceramic surfaces.
HEBERLEIN. POLYJET-TG-3.
Assortment.
Series HP
Ensures uniform interlacing points and density for technical yarns. Depending on the process, the pressure reduction and improved interlacing performance can achieve energy savings of up to 20%.
Series HP TopAir
Specially designed for high-tenacity yarns (HT & HMLS), offering hard interlacing points and uniform interlacing density.
Technical data.
Application area
|
| Important note |
| Type | Count in | Winding | Yarn tension |
|---|---|---|---|
| Series HP – for normal technical yarns | |||
| HP323A/WP60R | 550 … 1200 | … 3000 | 0.06 … 0.15 |
| HP405A/WP70R | 1000 … 2500 | … 5000 | 0.06 … 0.15 |
| HP454A/WP71R | 1800 … 4000 | … 3000 | 0.06 … 0.15 |
| Series HP TopAir – for high-tenacity technical yarns | |||
| HP323A/WO60 | 550 … 1500 | … 5000 | 0.06 … 0.15 |
| HP405A/WO70 | 1000 … 3000 | … 6000 | 0.06 … 0.15 |
| HP454A/WO71 | 1800 … 4500 | … 6000 | 0.06 … 0.15 |
Air consumption
| Type | Air channel diameter | Formula |
|---|---|---|
| Series HP | ||
| HP323A/WP60R | 3.2 mm | qvn = 4,759 x (pe + 1) |
| HP405A/WP70R | 4.0 mm | qvn = 7,437 x (pe + 1) |
| HP454A/WP71R | 4.5 mm | qvn = 9,412 x (pe + 1) |
| Series HP TopAir | ||
| HP323A/WO60 | 3.6 mm | qvn = 5,925 x (pe + 1) |
| HP405A/WO70 | 4.5 mm | qvn = 9,285 x (pe + 1) |
| HP454A/WO71 | 5.0 mm | qvn = 11,792 x (pe + 1) |
Compressed air requirements
| Overpressure PolyJet-TG-3 | 1.5 … 8.0 bar |
For the compressed air quality requirements, see Compressed air purity.
Request operating instructions.
