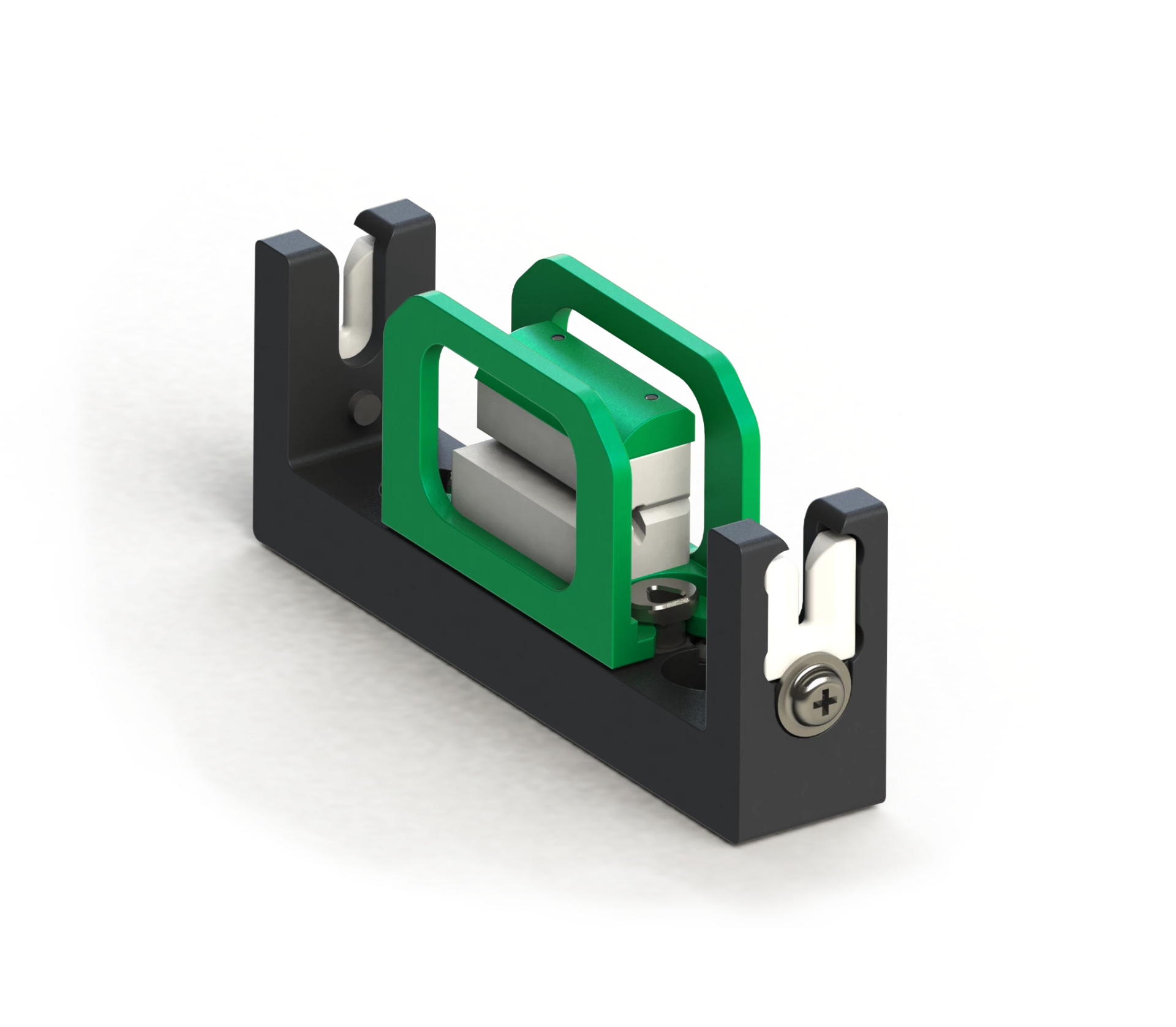

PolyJet-SP-3 Migra

HEBERLEIN. POLYJET-SP-3 MIGRA.

Features and Benefits.

The PolyJet-3 Migra not only ensures uniform distribution from the spinning preparation through to the yarn core, it also increases efficiency in downstream processes.

Thanks to the ingenious quick-fastening system, jet packs can be removed with a single 180° turn.

Technical data.

Application

Type	Count in jet [dtex]	Winding speed [m/min]
M090/CN01	… 55	… 7500
M110/CN16	… 95	… 7500
M130/CN14	… 190	… 7500
M161/CN26	… 350	… 7500
M200/CN27	… 800	… 7500

All specifications are non-binding reference values.

Air consumption

Type	Air channel diameter	Formula
M090/CN01	0.9 mm	q_vn = 0.376 x (p_e + 1)
M110/CN16	1.1 mm	q_vn = 0.562 x (p_e + 1)
M130/CN14	1.3 mm	q_vn = 0.786 x (p_e + 1)
M161/CN26	1.6 mm	q_vn = 1.190 x (p_e + 1)
M200/CN27	2.0 mm	q_vn = 1.859 x (p_e + 1)
M250/CN33	2.5 mm	q_vn = 2,905 x (p_e + 1)

p_e= overpressure [bar]q_vn= air consumption per thread [m³/h] (standard conditions according to DIN1343)

Compressed air requirements

Overpressure

0.5 … 2.0 bar

For the compressed air quality requirements, see Compressed air purity.
