Features and Benefits.

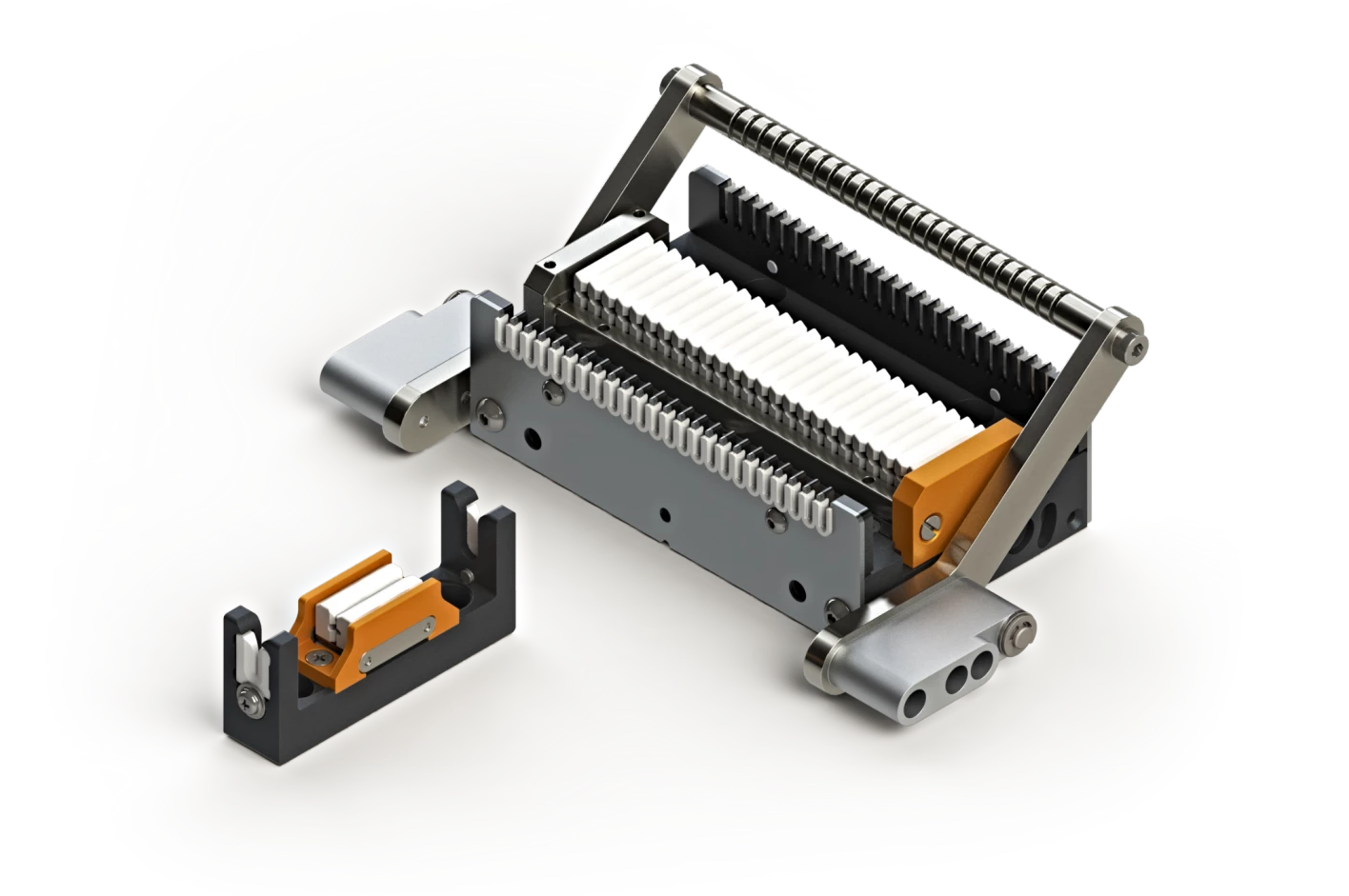

The PolyJet-SP-2 allows jets of different sizes and interlacing characteristics to be replaced on the same holder. This allows a quick response to changing market trends.

Different variants for 1, 2, 4, 6, 8, 10, 12, 16, 20, 24 or 32 threads are available on request. Depending on the jet type, multiple jets with thread line spacing of 4, 6, 8, 10 or 12 mm are also available.

Assortment.

Series HP

Allows a higher interlacing performance than the HN series with reduced air consumption. The jet is suitable for all textile multifilament yarns.

Series HN

The PolyJet-SP-2 HN is highly compact. As a result, some jet types allow very small thread line spacings (as low as 4 mm). High interlacing performance, uniformity and stability.

Series PP

The PolyJet-SP-2 PP is used for gentle interlacing with soft interlacing knots. The jet provides a high level of uniformity at low air pressure and can be used for delicate yarns, such as acetate or viscose.

Series TopAir

In addition to normal air stream from below, the PolyJet-SP-2 HN TopAir has an additional air stream from above. Maximum interlacing performance with minimum air consumption is thereby achieved. Hence very gentle interlacing is possible.

Series Migra

The PolyJet-2 Migra is used in spinning processes for the effective migration of spin finish in yarns.

Technical data.

Application

PolyJet-SP-2

Type

Count in
jet
[dtex]

Winding
speed
[m/min]

Yarn tension
after the jet
[cN/dtex]

Series HP

HP090A/WP01

… 55

… 6000

0.1 … 0.25

HP113A/WP10

… 95

… 6000

0.1 … 0.25

HP122A/WP10

… 95

… 6000

0.1 … 0.25

HP134A/WP20

55 … 167

… 6000

0.1 … 0.25

HP142A/WP20

55 … 167

… 6000

0.1 … 0.25

HP165A/WP30

110 … 300

… 6000

0.1 … 0.25

HP203A/WP40

220 … 420

… 6000

0.1 … 0.25

Series HN

HN112A/CN15

… 78

… 6000

0.1 … 0.25

HN121A/CN15

… 78

… 6000

0.1 … 0.25

HN133A/CN14

33 … 110

… 6000

0.1 … 0.25

HN132A/CN14

33 … 220

… 5000

0.1 … 0.25

HN141A/CN14

33 … 110

… 6000

0.1 … 0.25

HN163A/CN26

110 … 330

… 6000

0.1 … 0.25

HN164A/CN28

33 … 167

… 6000

0.1 … 0.25

HN202A/CN27

330 … 550

… 6000

0.1 … 0.25

HN251A/CN33

400 … 800

… 6000

0.1 … 0.25

Series HN TopAir

HN163A/CO26

110 … 330

… 6000

0.1 … 0.25

HN164A/CO28

33 … 167

… 6000

0.1 … 0.25

HN202A/CO27

330 … 550

… 6000

0.1 … 0.25

HN251A/CO33

400 … 1000

… 6000

0.1 … 0.25

Series PP

PP100

… 78

… 5000

0.1 … 0.25

PP200

33 … 167

… 5000

0.1 … 0.25

PP400

110 … 330

… 5000

0.1 … 0.25

All specifications are non-binding reference values.

PolyJet-SP-2 Migra

Type

Count in jet
[dtex]

Winding speed
[m/min]

M090/CN01

… 55

… 7500

M110/CN16

… 95

… 7500

M130/CN14

… 190

… 7500

M161/CN26

… 350

… 7500

M200/CN27

… 800

… 7500

All specifications are non-binding reference values.

Air consumption

PolyJet-SP-2

Type

Air channel diameter

Formula

Series HP

HP090A/WP01

0.9 mm

qvn = 0.376 x (pe + 1)

HP113A/WP10

1.1 mm

qvn = 0.562 x (pe + 1)

HP122A/WP10

1.2 mm

qvn = 0.669 x (pe + 1)

HP134A/WP20

1.3 mm

qvn = 0.786 x (pe + 1)

HP142A/WP20

1.4 mm

qvn = 0.911 x (pe + 1)

HP165A/WP30

1.6 mm

qvn = 1.190 x (pe + 1)

HP203A/WP40

2.0 mm

qvn = 1.859 x (pe + 1)

Series HN

HN112A/CN15

1.1 mm

qvn = 0.562 x (pe + 1)

HN121A/CN15

1.2 mm

qvn = 0.669 x (pe + 1)

HN133A/CN14

1.3 mm

qvn = 0.786 x (pe + 1)

HN132A/CN14

1.3 mm

qvn = 0.786 x (pe + 1)

HN141A/CN14

1.4 mm

qvn = 0.911 x (pe + 1)

HN163A/CN26

1.6 mm

qvn = 1.190 x (pe + 1)

HN164A/CN28

1.6 mm

qvn = 1.190 x (pe + 1)

HN202A/CN27

2.0 mm

qvn = 1.859 x (pe + 1)

HN251A/CN33

2.5 mm

qvn = 2.905 x (pe + 1)

Series HN TopAir

HN163A/CO26

1.8 mm

qvn = 1.481 x (pe + 1)

HN164A/CO28

1.8 mm

qvn = 1.481 x (pe + 1)

HN202A/CO27

2.2 mm

qvn = 2.315 x (pe + 1)

HN251A/CO33

2.8 mm

qvn = 3.658 x (pe + 1)

Series PP

PP100

2 x 0.9 mm

qvn = 0.753 x (pe + 1)

PP200

2 x 1.1 mm

qvn = 1.125 x (pe + 1)

PP400

2 x 1.4 mm

qvn = 1.822 x (pe + 1)

PolyJet-SP-2 Migra

Type

Air channel diameter

Formula

M090/CN01

0.9 mm

qvn = 0.376 x (pe + 1)

M110/CN16

1.1 mm

qvn = 0.562 x (pe + 1)

M130/CN14

1.3 mm

qvn = 0.786 x (pe + 1)

M161/CN26

1.6 mm

qvn = 1.190 x (pe + 1)

M200/CN27

2.0 mm

qvn = 1.859 x (pe + 1)

pe = overpressure [bar]qvn = air consumption per thread [m3/h] (standard conditions according to DIN1343)

Compressed air requirements

Overpressure PolyJet-SP-2 HN, HP

1.5 … 6.0 bar

Overpressure PolyJet-SP-2 PP

1.5 … 4.0 bar

Overpressure PolyJet-SP-2 Migra

0.5 … 2.0 bar

For the compressed air quality requirements, see Compressed air purity.

Request operating instructions.

Would you like to receive an operating manual for your product? Request now.
