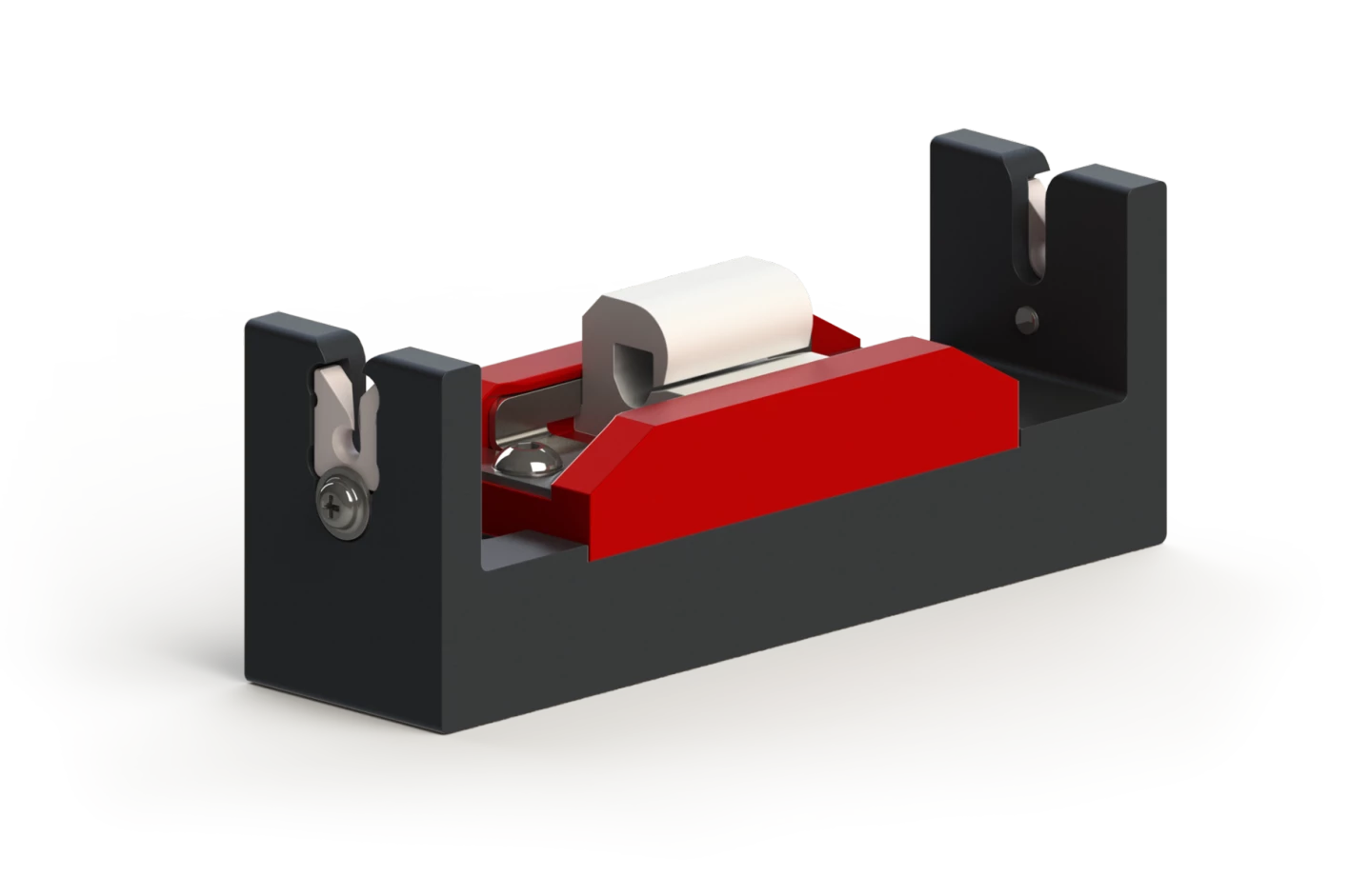

MIG-Jet-TG

HEBERLEIN. MIG-JET-TG.

Features and Benefits.

The MIG-Jet-TG is used in the spinning process for spin-finish migration in textile, technical, and BCF (Bulked Continuous Filament) yarns. Its robust design ensures consistent results and a long service life.

Technical data.

Application

Flat yarns
Type	Count in jet [dtex]	Winding speed [m/min]
MJ32.0	… 5000	… 7500

BCF yarns
Type	Count in jet [dtex]	Winding speed [m/min]
MJ32.0	… 8000	… 5000

All specifications are non-binding reference values.

Air consumption per thread

Type	Air channel diameter	Formula
MJ32.0	3.2 mm	q_vn = 4.759 x (p_e + 1)

p_e= overpressure [bar]q_vn= air consumption per thread [m³/h] (standard conditions according to DIN1343)

Compressed air requirements

Overpressure

0.5 … 2.0 bar

For the compressed air quality requirements, see Compressed air purity.
