The Lufan-3 Nano is primarily used for threading yarn on texturing machines while they are operating. The design enables easy access to hard to reach areas.

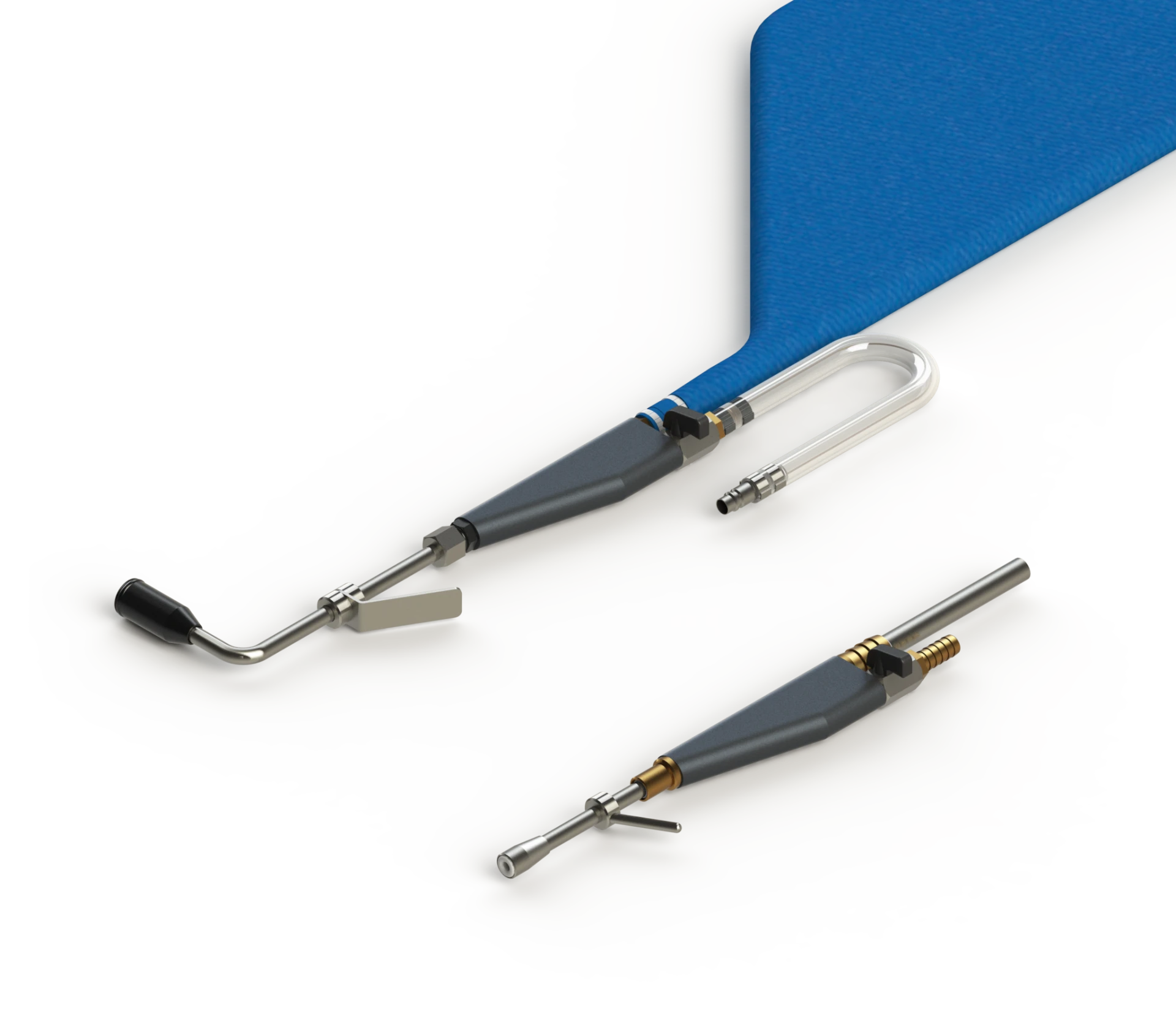

HEBERLEIN. LUFAN-3 NANO.
Assortment.
Lufan-TF5-3S Nano
For threading yarn in texturing (ATY, DTY) and air covering machines. The maximum total count is 1,000 dtex.
Lufan-TF6-3 Nano
For winding machines / draw winders and high bulk yarns on air texturing machines. The maximum total count is 15,000 dtex.
Technical data.
Application area
| Type | Typical range [dtex] | (Max. limits of application) | Winding speed [m/min] |
|---|---|---|---|
| TF5-3 | … 600 | (… 1000) | … 1500 |
| TF6-3 | … 10000 | (… 15000) | … 2000 |
Air consumption per thread
| Type | Formula |
|---|---|
TF5-3 | qvn = 9.5 x (pe + 1) |
TF6-3 | qvn = 20 x (pe + 1) |
Compressed air requirements
| Max. overpressure | 10 bar |
Operating pressure |
|
For the compressed air quality requirements, see Compressed air purity.
