FDY-Jet-TG

HEBERLEIN. FDY-JET-TG.

Features and Benefits.

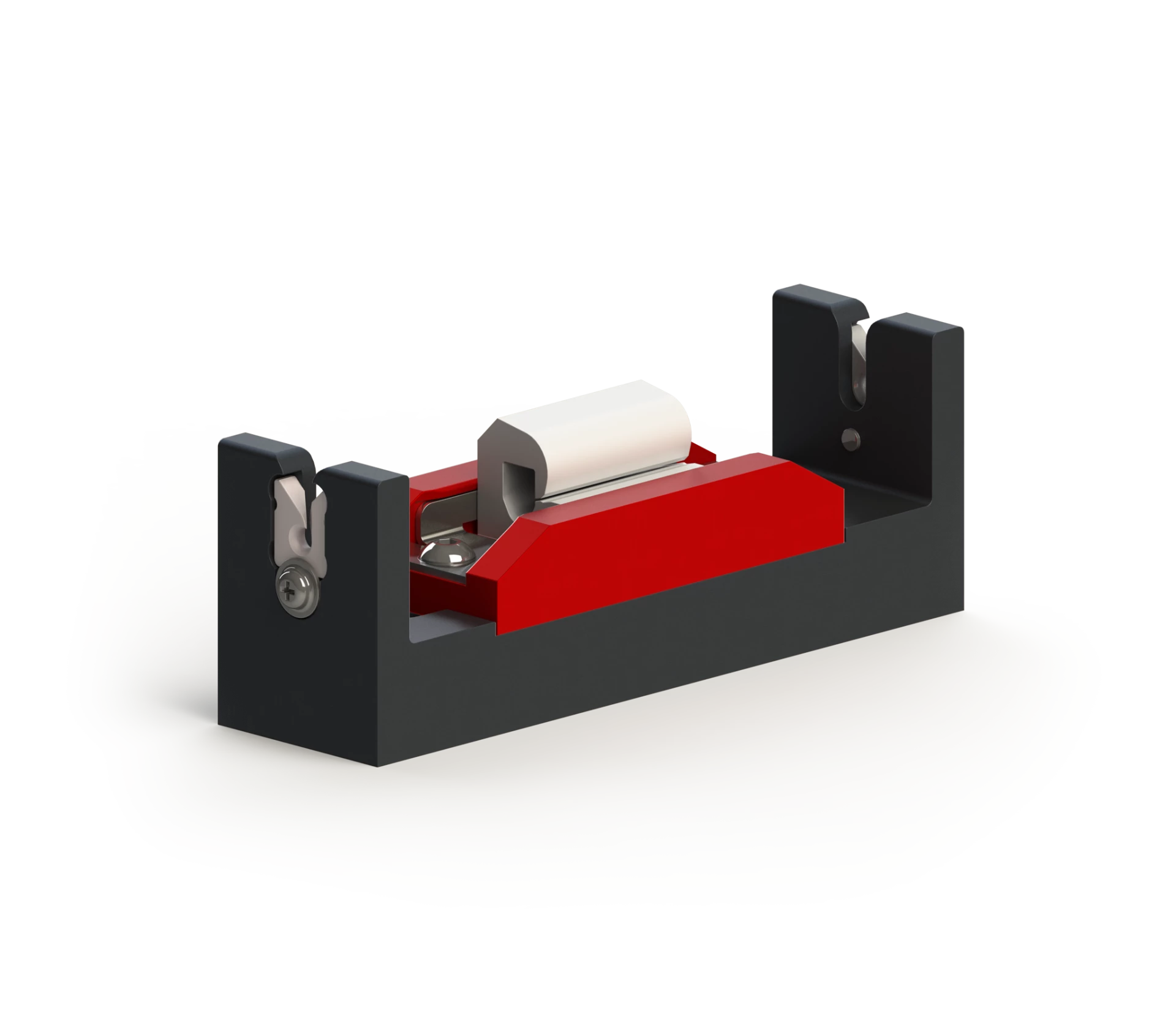

The FDY-Jet-TG achieves a high interlacing performance, and its design is reduced to the essentials. Maximum functionality and durability as well as a robust design ensure consistent results. The jet is especially recommended for the interlacing of technical multifilament yarns made of polyester, polyamide, and polypropylene in all spin-draw processes.

Technical data.

Application

Type	Count in jet	Winding speed	Yarn tension after the jet
FJ40.0	1000 … 2500 dtex	… 5000 m/min	0.06 … 0.15 cN/dtex

All specifications are non-binding reference values.

Air consumption per thread

Type	Air channel diameter	Formula
FJ40.0	4.0 mm	q_vn = 7,437 x (p_e + 1)

p_e= overpressure [bar]q_vn= air consumption per thread [m³/h] (standard conditions according to DIN1343)

Compressed air requirements

Overpressure

0.5 … 2.0 bar

For the compressed air quality requirements, see Compressed air purity.
