AirSplicer Basix

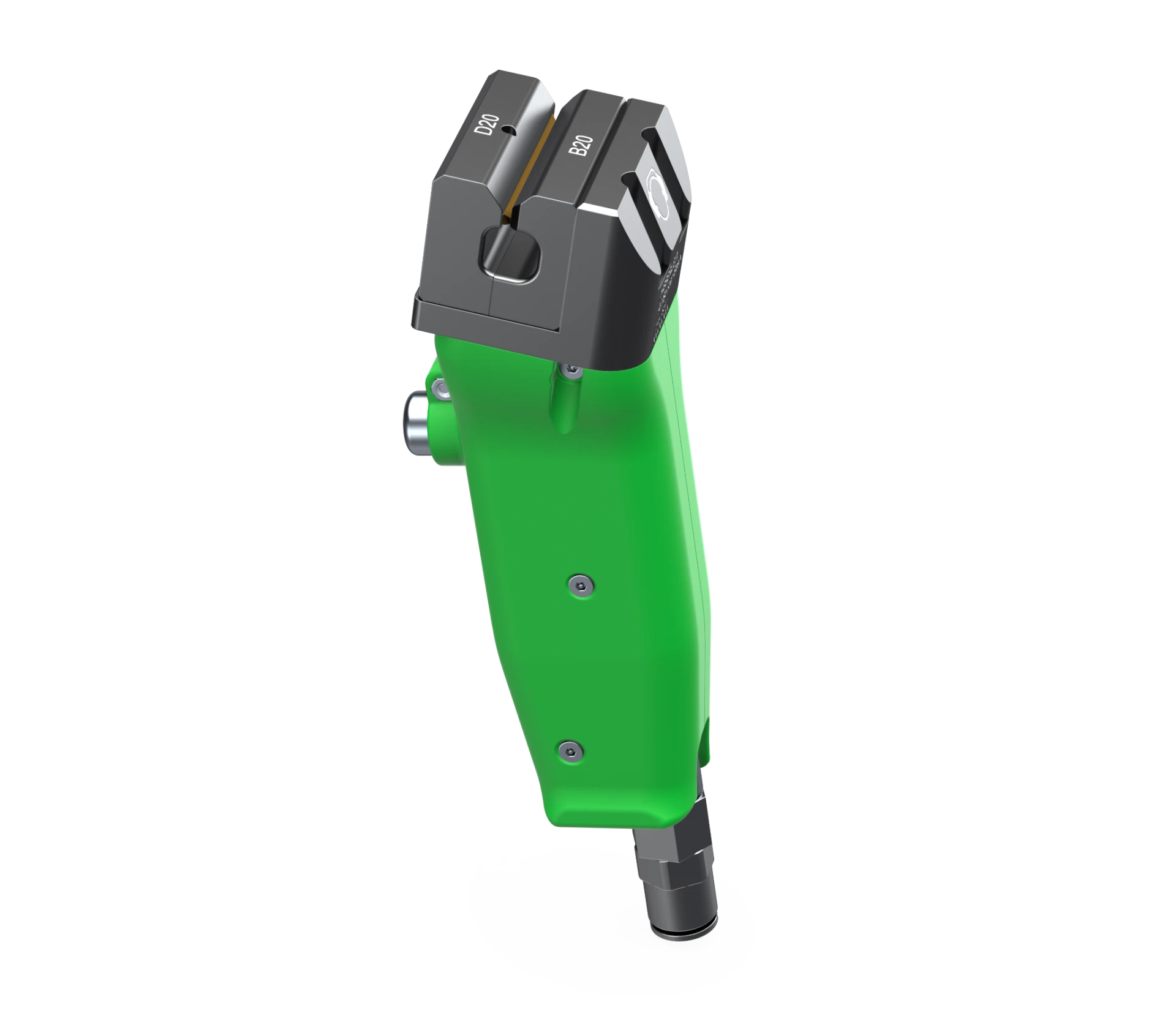

HEBERLEIN. AIRSPLICER BASIX.

Features and Benefits.

The AirSplicer-Basix offers maximum control and impresses with its simple operation, pared down to the essentials. Depending on the material used and the desired splice strength, one or more connection points can be created flexibly.

The device is ideal for technical yarns, including aramid, glass, carbon. It is also perfect for high-strength yarns made from UHMWPE with up to 130,000 dtex, which can also be easily spliced.

The sophisticated blow chamber design makes it easy to insert, splice and remove the yarn – without any additional handling or the need for the user to operate any other mechanisms.


Technical data.

Application area

Type - yarn material

Count range [dtex]

Synthetic multifilament yarns

B10/D10

10’000 … 40’000

B15/D15

35’000 … 55’000

B20/D20

50’000 … 85’000

B25/D25

80’000 … 115’000

B30/D30

110'000 … 150’000

Aramid multifilament yarns

B10/D10

10’000 … 35’000

B15/D15

30’000 … 60’000

B20/D20

55’000 … 95’000

B25/D25

90’000 … 110’000

B30/D30

105'000 … 130’000

Carbon multifilament yarns

B10/D10

10’000 … 35’000

B15/D15

30’000 … 75’000

B20/D20

70’000 … 95’000

B25/D25

90’000 … 120’000

B30/D30

115'000 … 130’000

Glass multifilament yarns

B10/D10

10’000 … 40’000

B15/D15

35’000 … 55’000

B20/D20

50’000 … 80’000

B25/D25

75’000 … 120’000

B30/D30

115'000 … 150’000

All specifications are non-binding reference values.

Compressed air requirements

Overpressure

4.0 … 8.0 bar

For the compressed air quality requirements, see Compressed air purity.
